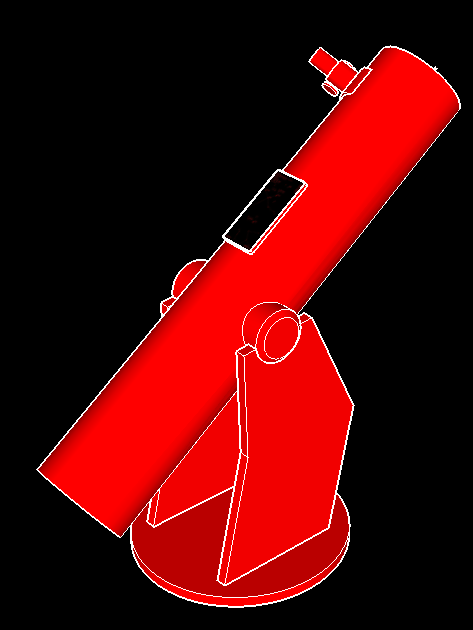

Connect the smartphone to the optical tube such that its top points to the viewing direction and it lies flat on the tube.

---

< Prev Next >

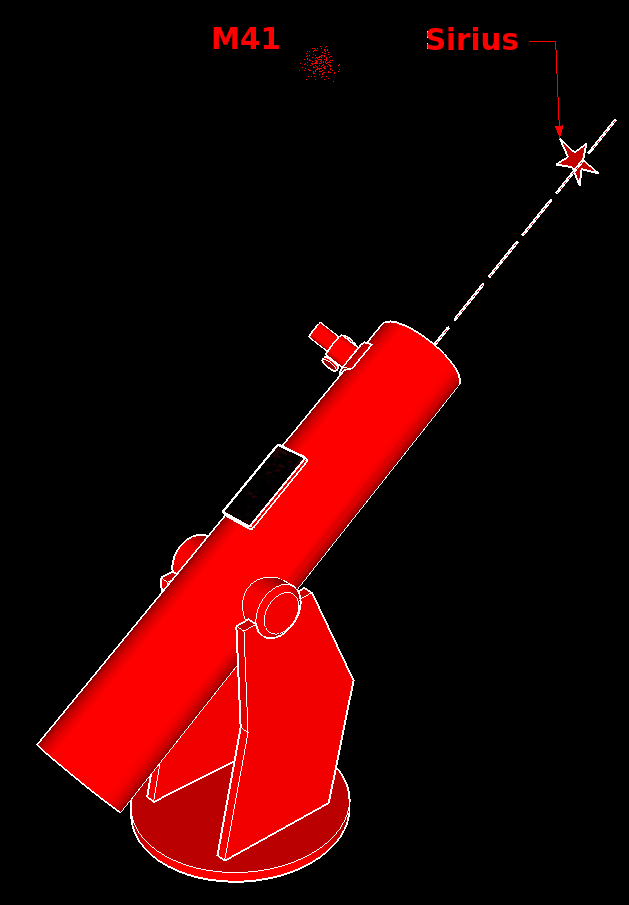

Point the telescope to an easily identifiable star or planet nearby an object you want to find. For example in order to find M41 or M47, point the telescope to Sirius — this is going to be the alignment star.

When the telescope is pointing to the alignment star tap Align button and tap on the alignment star on the map. Once the application is aligned, it tracks the telescope movement using smartphone's sensors.

< Prev Next >

If you can't see the alignment star on the map, there may be a common compass accuracy problem.

In such a case tap on   to switch to manual mode and scroll the map left or right till you see the alignment star.

Then tap Align and tap on the alignment star on the map as usual.

< Prev Next >

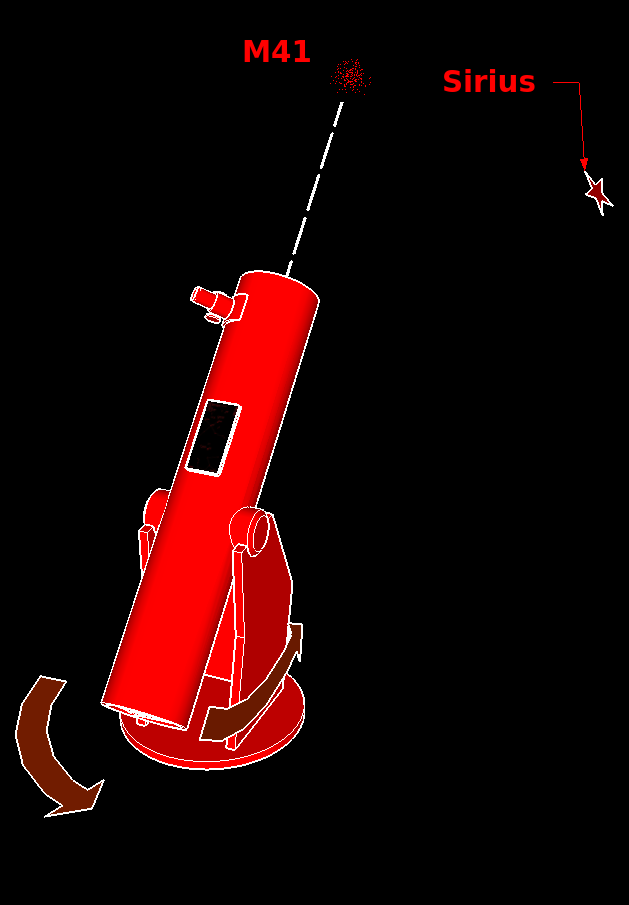

Once aligned, tap on the object you want to find (for example M41, M47) and follow the direction line on the map till you reach the target. Now you can observe the object you selected.

It is recommended to repeat alignment for each new target you want to find

For detailed instruction and troubleshooting please refer to the [Video Tutorial] and to the integrated manual via:   → ?
